Haltech CAN Keypad Console Mount
Puts the Haltech 8-button CAN keypad in the console pocket ahead of the shifter — one hand off the wheel and it's under your fingers. No bracket hanging off a vent, no double-sided tape, no reaching across the dash mid-corner to find anti-lag.
Finished in a black textured print. Fit it exactly as it arrives — no sanding, no paint, no prep.
Smooth-walled and printed as a paint substrate. Sand, prime and color-match it to your interior. Arrives unfinished.
Why this one doesn't flex
The Haltech keypad has four mounting holes. Most mounts pick up two of them, which is enough to hold the keypad in place and not enough to stop it moving — so every button press pushes the whole assembly back into the console, and after a few months the whole thing rattles.

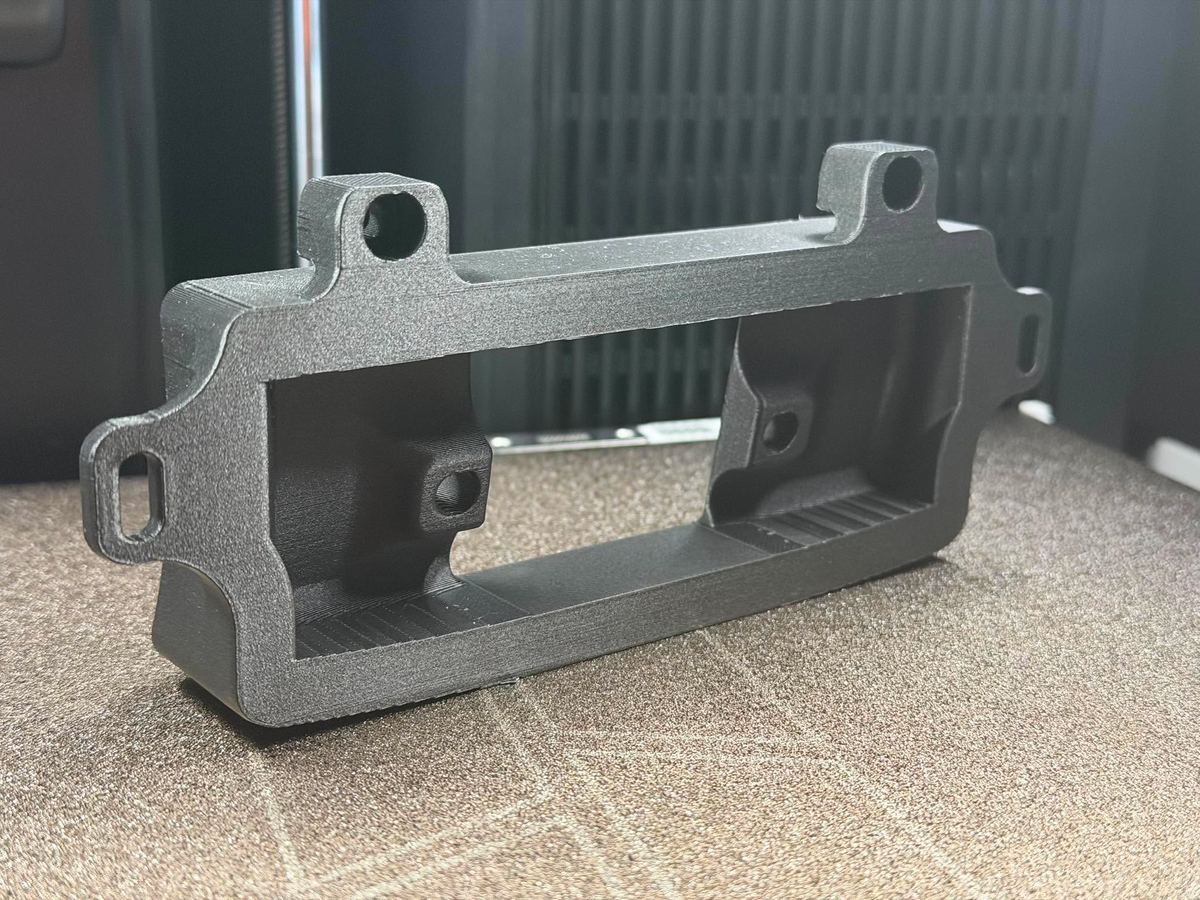

This uses all four. The keypad clamps down on two of the M6 nuts from Haltech's own mounting kit, and the body of the mount picks up the console at four points. Press a button and nothing moves. That's the entire reason this part exists.
It's modelled to the GD console rather than adapted from a universal blank, so it sits flush and follows the lines that are already there instead of sitting proud of them.
Where it goes, and what you give up

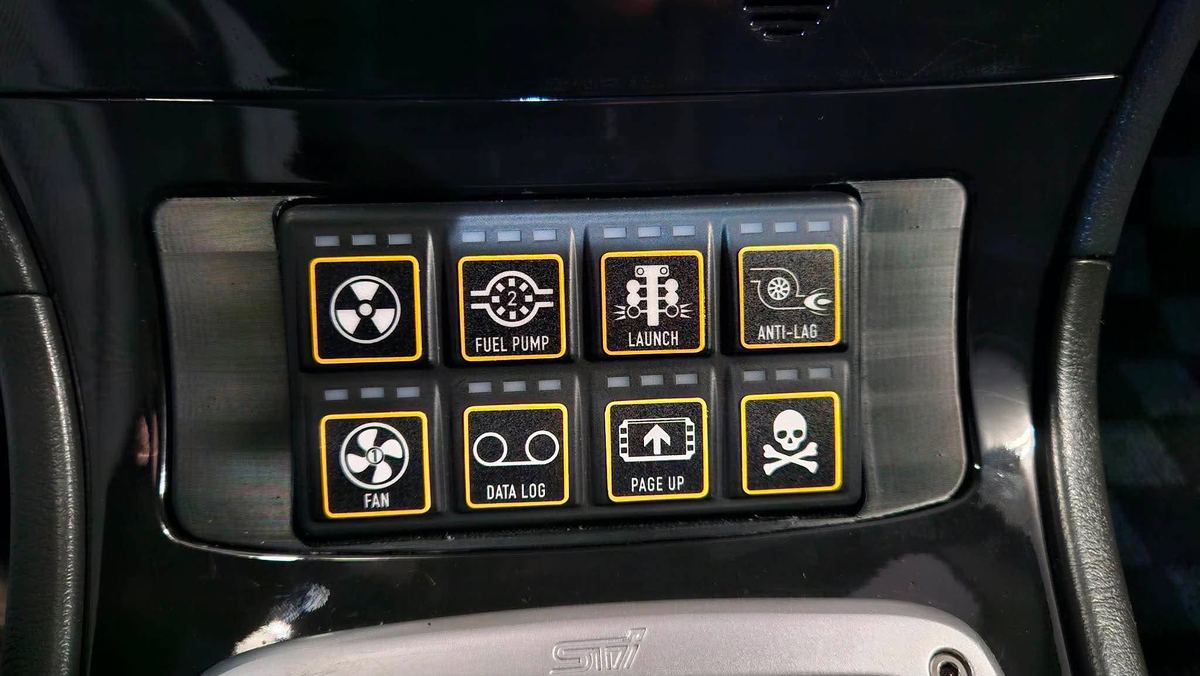

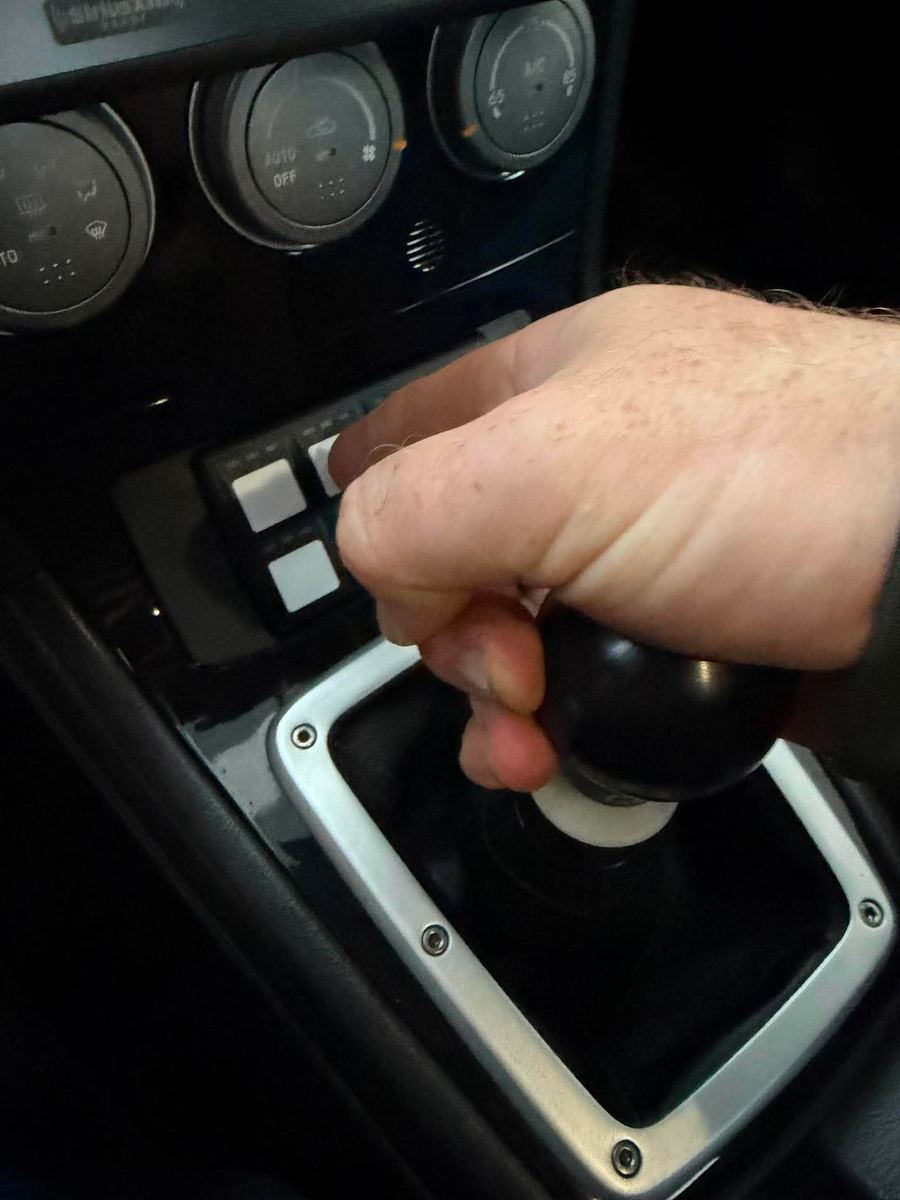

It occupies the cigarette lighter and ashtray pocket in the center console, directly ahead of the shifter. That position is the whole point: your hand is already there. You are not taking your eyes off the road or reaching across the dash to arm launch control or flip the fuel pump.
- The keypad is not included. This is the mount only. The keypad is the Haltech HT-011501 CAN Keypad, 8 button (2x4), bought from Haltech or a Haltech dealer.
- You lose the cigarette lighter and ashtray. The 12V socket can be relocated elsewhere in the car if you want to keep it.
- Fits the 2005–2007 WRX and STI (GD) only. Other chassis are modelled one at a time — ask and we'll tell you what's on the list.
- Made to order, so no returns or cancellations once it goes on the printer. Damaged in transit or not what you ordered, and we'll make it right.
Which finish

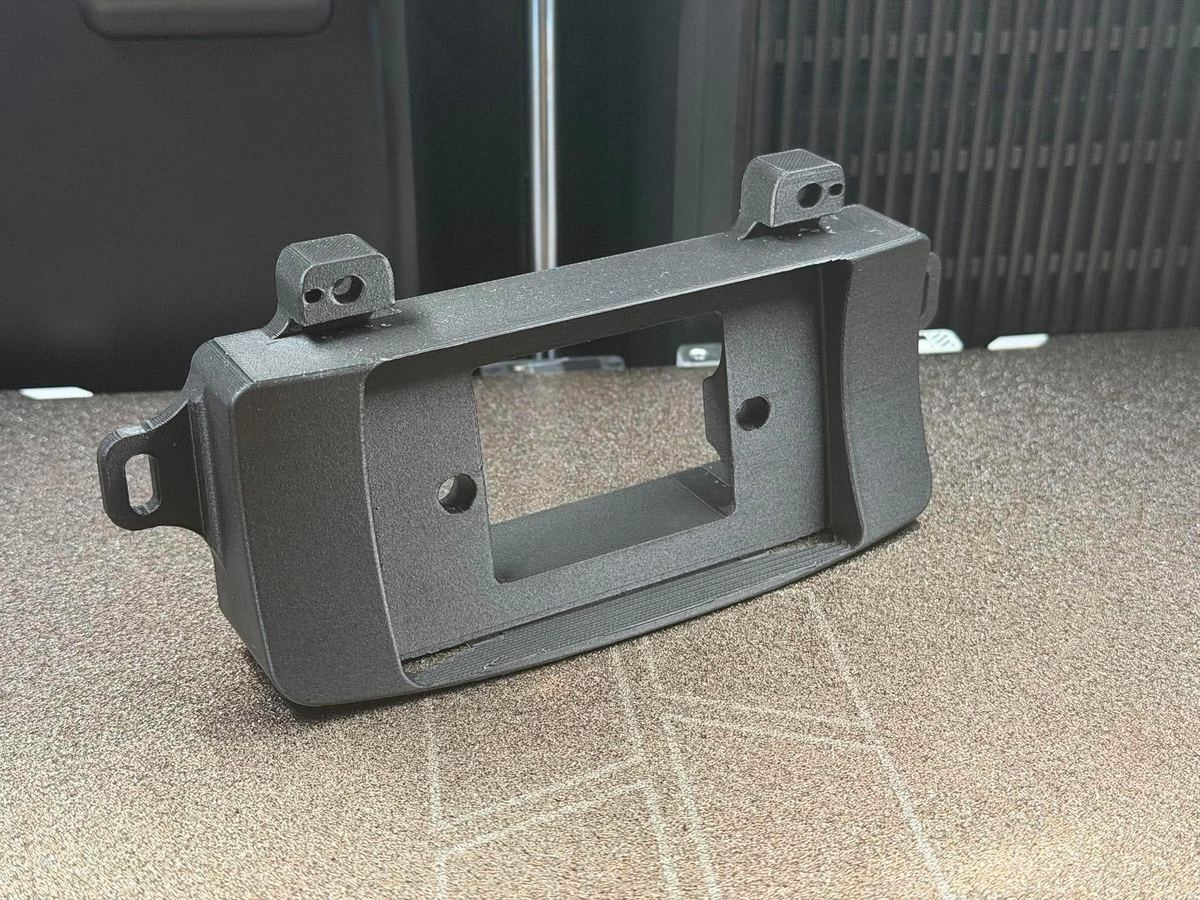

Textured Black is the one most people want. It arrives with a black textured surface that reads as a factory-fit interior part, and it goes straight in. Nothing to do to it.
Smooth / Paintable is for anyone color-matching a build. It's printed with smooth walls specifically as a paint substrate — sand it, prime it, shoot it in whatever your interior is. It arrives unfinished, and it will look unfinished until you paint it. If you weren't planning to paint, buy the textured one.
Specifications
| Fits | 2005–2007 Subaru Impreza WRX & WRX STI (GD) |
|---|---|
| Suits keypad | Haltech HT-011501 CAN Keypad, 8 button (2x4) |
| Location | Centre console, cigarette lighter / ashtray pocket |
| Material | ASA — UV and heat stable, automotive grade |
| Mounting points | All four keypad holes used |
| Fixings | Uses 2× M6 nuts from Haltech's supplied mounting kit |
| Finishes | Black textured (ready to install) or smooth (paintable) |
| In the box | Mount only |
| Made | Printed to order by M-Tuned, Florida, USA |
Shipping & returns
Every mount is printed for your order — nothing sits on a shelf. It ships within 3–5 business days by USPS at a $10 flat rate, once per order however many parts are on it. We ship within the United States only.
You'll get an email with a tracking number the moment it's handed to USPS, and the same tracking shows in your M-Tuned portal.
Because it's made to order, there are no returns or cancellations once printing starts. If it turns up damaged, or it isn't what you ordered, message us and we'll put it right.
Questions
Does this include the Haltech keypad?
No. This is the mount only. The keypad is the Haltech HT-011501 CAN Keypad, 8 button (2x4), bought from Haltech or a Haltech dealer.
What does it fit?
The 2005–2007 Subaru Impreza WRX and WRX STI, GD chassis. It occupies the cigarette lighter and ashtray pocket in the center console ahead of the shifter.
Do I lose the cigarette lighter?
Yes. The mount goes where the lighter and ashtray sit. The 12V socket can be relocated elsewhere in the car if you want to keep it.
Will it warp in a hot car?
It's printed in ASA, the filament used for automotive interior and exterior parts specifically because it holds its shape and color in heat and sunlight. PLA parts don't.
How long does it take to arrive?
Each one is printed to order and ships within 3–5 business days by USPS, flat rate $10, within the United States. You get an email with a tracking number as soon as it goes out.
Can you make one for my car?
Possibly. These are modelled one chassis at a time. Email [email protected] with your car and keypad and we'll tell you whether it's on the list.
